Refrigerator truck is widely used for transporting frozen foods, dairy products, fruits, vegetables, vaccine drugs etc, which is equipped with refrigeration unit and polyurethane insulation compartment.
Refrigerator truck for sale has Sinotruk howo truck, Isuzu truck, Dongfeng truck, Faw truck, Foton truck and Jac truck according to the chassis classification. Refrigerator trailer has two axle trailer and three axle trailer.
As the refrigerator truck manufacturer, CLW GROUP are specialized in manufacturing 3ton-60ton refrigerator truck/trailer and exports a large number of trucks/trailers abroad every year. Our high quality refrigerator trucks have a competitive advantage in the market both in price and quality.
Main Technical Parameter | |

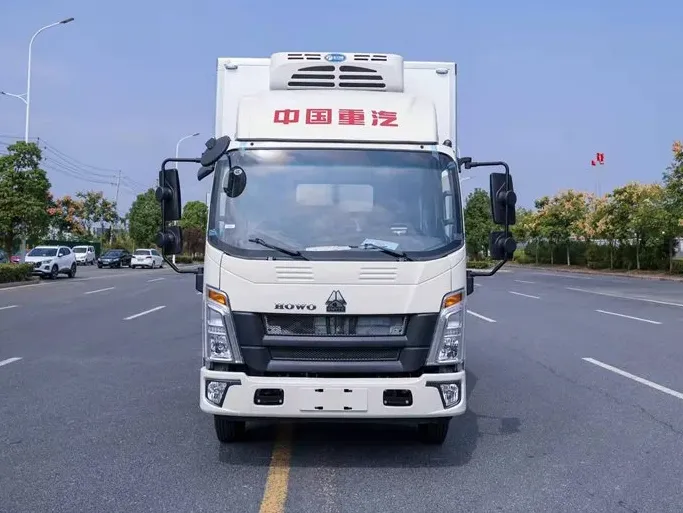

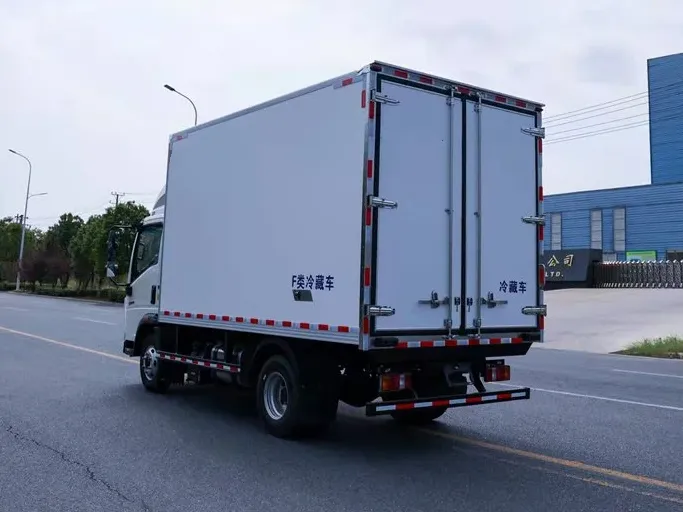

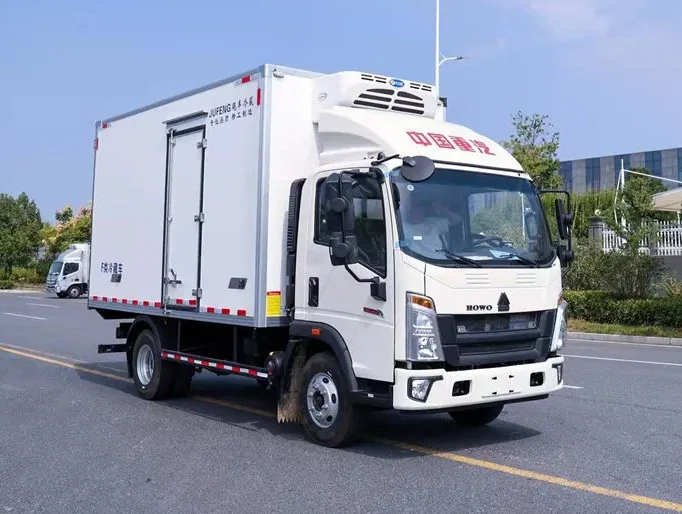

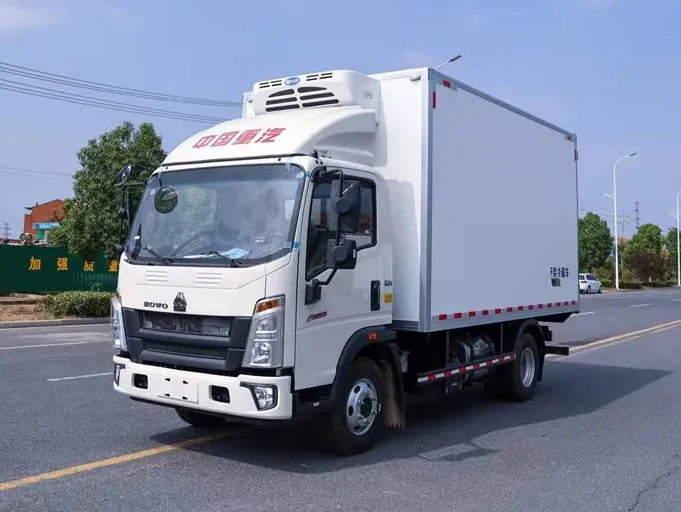

Model Name | HOWO light 4X2 refrigerator truck |
Driving Type | 4×2. Right hand drive/right hand drive |
Weights | |
Rated payload Weight (kg) | 5000 |
Curb Weight (kg) | 4450 |
Dimensions | |
Wheelbase(mm) | 3360 |
Overall Dimension (mm) | 5995*2130*2960 |
Box dimension (mm) | 4100×1900×1800 |
Engine | |
Engine model | YN4102QBZL(116HP) |
Engine type | Diesel 4-storke, turbo-charge, water-cooling, |
No. of cylinders | Straight-4 cylinders |
Displacement (L) | 3.76L |
Rated power Rev((Kw) | 85KW |
Drive Line | |
Transmission | WLY6T100.6 forwards, 1 reverse gear, manual operation |
Steering | Power steering |
Cab | Single row cabin ,with A/C |
Axle | |
Front axle | 2.0 tons |
Rear axle | 3.5 tons |
Tire specification | |
Tire specification | 7.00R16 standard tire |
Tire quality | 6 tires+1 spare tire |
Other | |
Electric system | 24V |
Tool | Standard equipment |
refrigerator truck information | |

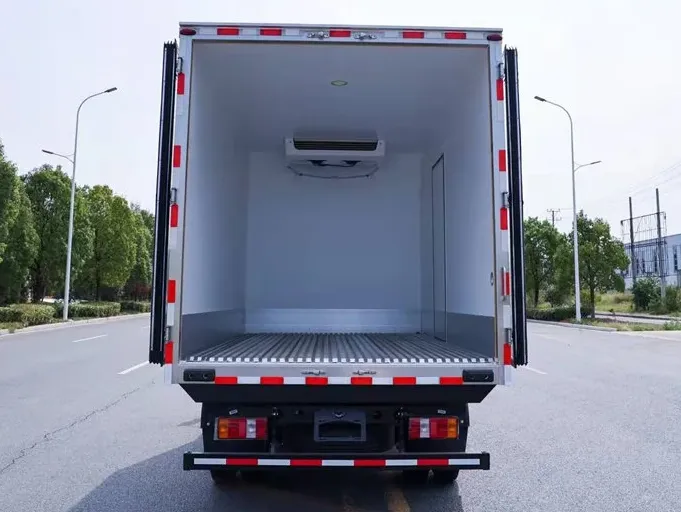

Box material | Glass reinforced plastic inside and outside,8cbm polyurethane extruded Insulating layer. |
Ref.plan | hanyan |
Temperature | to (-18) or(-16) degree |
Other | |
Electric system | 24V |
Equipment | One tool box |
