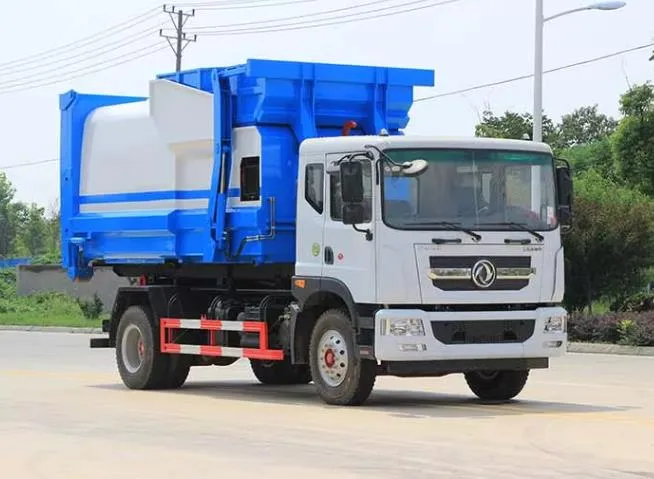

We can supply 3-12CBM hook lift trash trucks and the China hooklift trucks for sale already was exported to more than 30 countries. Competitive price with high quality always accompany with our hook lift garbage truck.
The hook lift dumpster trucks possess of good sealing and ensure no dust or leakage during garbage transportation process, easy operation and the upper cover system of the hook lift refuse trucks can be opened and retracted in a short time, small garbage box size and with light curb weight, good quality ensure safety and so on.
[Technical Parameters of the Entire Vehicle] | |
Kerb Weight (Kg) | 6350 |
Overall Dimensions (mm) | 6750×2525×3010 |
Lifting Capacity(Kg) | 14000 |
Big Arm Structure | Integrated Molding |
Working Environment Temperature (℃) | -20~45 |
Operating Mode | Automatic+Manual |
Dumping Angle of Garbage Bin(°) | 70 |
Garbage Bin Capacity(m³) | 10 |
Trash Container Thickness(mm) | 4 Side 5 Bottom |
Garbage Bin Size(mm) | 4500×2200×1000 |
Material of Garbage Bin | Q235 Carbon Steel |
Garbage Bin Coating Process | Baking Varnish |
Number of Passengers Allowed in the cab (Person) | 2/3 |
Maximum Speed (km/h) | 105 |
[Chassis Technical Parameters] | |
Brand Name | Dongfeng |
Brake | Air Brake/Oil Brake |
Fuel Type | Diesel |
Engine Power(kw) | 125 |
Front Axle/Rear Axle (t) | 3.9/8 |
Gearbox Model | 6-Speed Manual |
Number of Axles | 2 |
Wheelbase (mm) | 3950 |
Number of Tires | 6 |
Tire Size | 9.00R20 |
