Dongfeng 6x4 fire water tanker Truck

Drive Wheel

6*4

Type

Tanker

Transmission Type

Manual

Condition

New

Horsepower

245HP

Tank Capacity

18000-20000L

Emission Standard

EURO 5

Fuel Type

Diesel

Max. Work Height

>40M

Size

9980*2500*3380

Place of Origin

China

Gross Weight

25000

Wheelbase

4350+1350MM

Product Name

Fire water tanker

Chassis brand

DONGFENG

tyre

10

Tank Volume

20000L

Fire truck type

Water Tank Fire Firefighting Truck

Tank body material

Capacity: 15000L.
Material: The water tank is made of high-quality carbon steel plate. The interior of the tank body is subjected to anti-corrosion
treatment. The bottom plate of the water tank is 4mm carbon steel plate, the side plates and sealing plates are 4mm carbon steel
plates, and the top plate is 3mm carbon steel checkered plate.
Structure: Welded with steel plates and equipped with anti-sloshing plates.
Equipment: 1 manhole cover with quick locking and opening device.
1 overflow device.
1 liquid level indicator.
1 sewage outlet controlled by manual valve.
Technical requirements: Comply with the relevant provisions of XF39 "Fire Requirements and Test Methods for Fire Trucks".

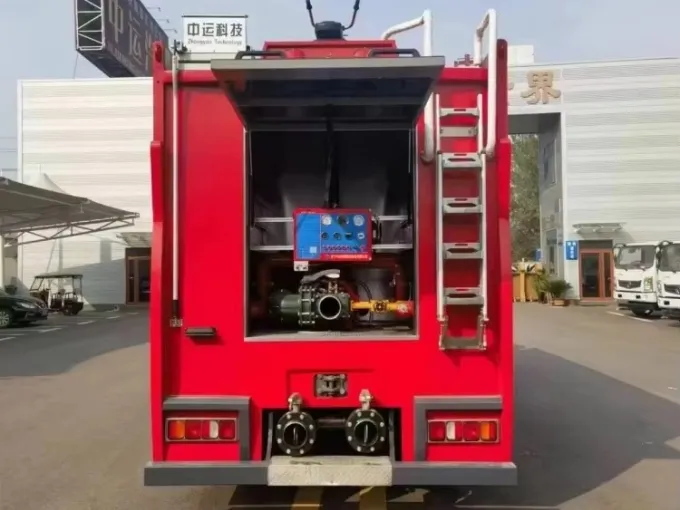

fire pump

Model: CB10/40 normal pressure fire pump.
Flow rate: 40L/s.
Pressure: 1.0Mpa.
Maximum suction depth: 7m.
Priming time: ≤35s.
Vacuum pump type: Piston type.
Installation form: Rear-mounted.

power take off

Type: Sandwich type (full power).
Operation: Controlled by solenoid valve (electric operation).
Cooling method: Forced adjustable water cooling.
Lubrication method: Splash oil lubrication.

fire monitor

Model: PS8/40W.
Flow rate: 40L/s.
Range: ≥60 m.
Pressure: 0.8MPa.
Rotation angle: Horizontal 360°, elevation -35° to 70°.

Equipment configuration.

40 normal pressure water tank fire truck
Standard equipment configuration table for equipment - internal buckle type
Category Serial No. Name Specification Quantity Unit Remarks
On-board
technical
documents 1 Fire truck operation manual 1 copy
2 Fire truck equipment configuration table 1 sheet
3 Automobile chassis operation manual 1 copy
4 Automobile chassis certificate 1 sheet
5 Fire pump operation manual 1 copy
6 Accessories (tools) on board 1 set Accessories and tools on the original chassis
Fire-fighting
equipment 1 Suction hose 125×4 meters 2 pieces Internal buckle type
2 Water filter FLF125 1 piece Internal buckle type
3 Water distributor FII80/65×2-1.6 1 piece Internal buckle type
4 Water collector JII125/65×2-1.0 1 piece Internal buckle type
5 Fire hose 13-65-20 6 reels Low pressure; internal buckle type
6 Fire hose 13-80-20 4 reels Low pressure; internal buckle type
7 Fire hose 13-65-5 1 reel Internal buckle type (for external water injection)
8 Reduced diameter adapter KJ65/80 1 piece Internal buckle type
9 Fire hose wrapping cloth DT-SB 4 pieces
10 Fire hose protection bridge Length 570 2 pairs
11 Fire hose hook 4 pieces
12 Above-ground hydrant wrench QT-DS1; length 370 1 piece
13 Underground hydrant wrench Length 970 1 piece
14 Suction hose wrench FS125 2 pieces
15 Direct current switch nozzle QZG3.5/7.5; 65 1 branch Low pressure; internal buckle type
16 Multi-purpose nozzle QDH6.0/8; 65 1 branch Low pressure; internal buckle type
Breaking and
rescue
tools 1 Fire extinguisher 3kg/ABC 1 unit
2 Spade Length 860/1050 1 piece
3 Fire iron Length 900 1 piece
4 Fireman's belt axe GF-285; length 285 1 piece
5 Fire flat axe QTF-PF; length 810 1 piece
6 T-shaped pick QTF-DG; 700/900 1 piece
7 Rubber hammer 1 piece
Remarks 1. Any other equipment and components not listed in this configuration table are optional as required by the user.
2. When dispatching the vehicle, the salesman should take the vehicle pick-up list and this table to the warehouse to go through
the procedures for collecting equipment configuration.
